Top Engine Kits
Find genuine Interstate-McBee inframe kits, overhaul kits, and re-ring kits for Caterpillar, Cummins, Detroit Diesel, International and Volvo engines — with the lowest prices guaranteed.
Caterpillar
CAT
3406E · C15 · C16 · C13 and more

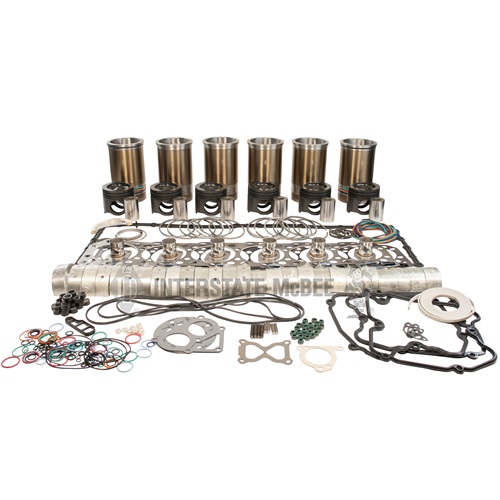

MCIF3564787
Caterpillar Inframe Kit — 3406E / C15 / C16
Kit Includes:
- MCBC15212 Inframe Gasket Set (×1)
- M-2243246 Rod Bearing (×6)
- M-3178766 Main Bearing (×7)
- M-2531752 Thrust Plate (×2)
- CG138NPR Product Box (×1)
- M-CK3564787P Cylinder Kit (×6)
Cross Ref: MCIF3067460
Shop Now →

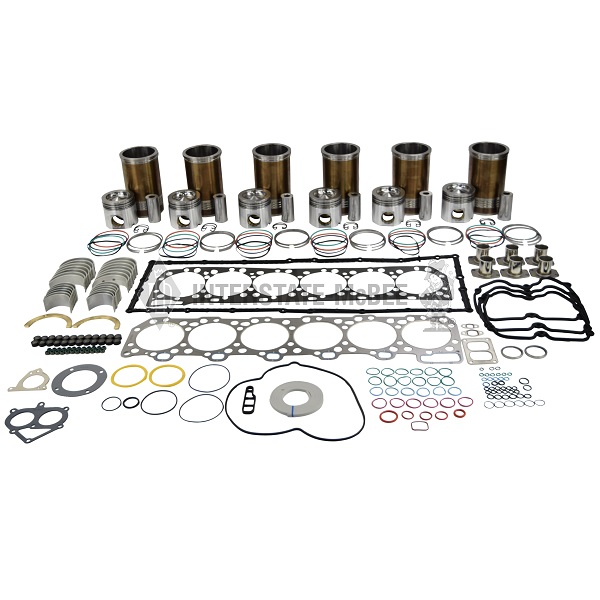

MCIF1807352-C15
Caterpillar Inframe Kit — 3406E / C15 / C16
Kit Includes:
- CG138NPR Product Box (×1)
- M-2531752 Thrust Plate (×2)
- M-9Y7735G Rod Bearing (×6)
- M-CK1807352P Cylinder Kit (×6)
- M-3178766 Main Bearing (×7)
- MCBC15112 Inframe Gasket Set (×1)

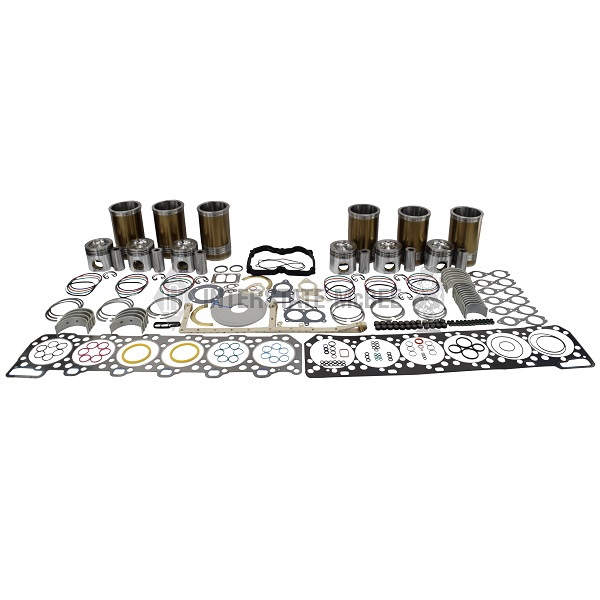

MCIF1807352
Caterpillar Inframe Kit — 3406E / C15 / C16
Kit Includes:
- M-2531752 Thrust Plate (×2)
- M-9Y7735G Rod Bearing (×6)
- MCB3406472 Inframe Gasket Set (×1)
- M-CK1807352P Cylinder Kit (×6)
- M-3178766 Main Bearing (×7)
- CG138NPR Product Box (×1)
MCIF3466615
Caterpillar Inframe Kit — 3406E / C15 / C16 (Low Compression)
Kit Includes:
- MCBC15212 Inframe Gasket Set (×1)
- M-2243246 Rod Bearing (×6)
- M-3178766 Main Bearing (×7)
- M-2531752 Thrust Plate (×2)
- M-CK3466615P Cylinder Kit (×6)
- CG138NPR Product Box (×1)
- LABEL 4X4 Product Label (×1)
- CAT-PIS-103-WAR-0001 Warning - M-3466615 (×1)

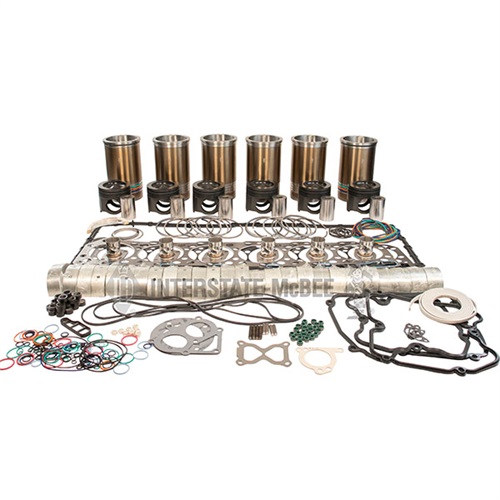

MCOH3466615
Caterpillar Overhaul Kit — 3406E / C15 / C16 (Low Compression)
Kit Includes:
- MCBC15211 Major Overhaul Gasket Set (×1)
- M-2243246 Rod Bearing (×6)
- M-3178766 Main Bearing (×7)
- M-2531752 Thrust Plate (×2)
- M-CK3466615P Cylinder Kit (×6)
- CG138NPR Product Box (×1)
- LABEL 4X4 Product Label (×1)
- CAT-PIS-103-WAR-0001 Warning - M-3466615 (×1)
Cummins
CUMMINS
ISX · QSX · ISM · L10 · M11 · N14 · NT and more

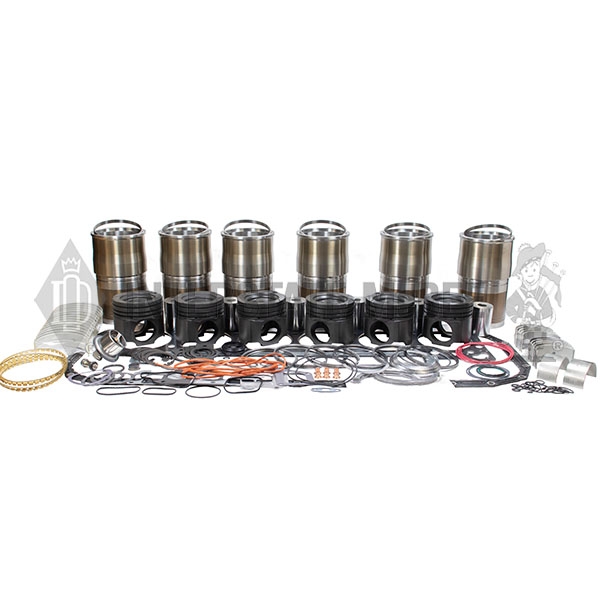

M-5579309
Cummins Inframe Kit — ISX / QSX (X15 CM2350 150mm)
Kit Includes:
- M-5405829 Piston Kit (×6)
- M-3678756 O-Ring Seal (×1)
- M-4026684 Oil Pan Gasket (×1)
- M-4357177 Pressure Relief Valve (×1)
- M-5406187 Upper Engine Gasket Set (×1)
- M-4376168 Cylinder Liner Kit (×6)
- M-5406110 Main Bearing Kit (×1)
- M-4318947 Thermostat (×1)
- MCB2882087 Connecting Rod Bearing (×6)
- M-4298242 High Temp Stud (×4)
- M-3818824 Hex Head Nut (×4)
- CG138TPR Product Box (×1)
- CG72PR Product Box (×1)
- M-3689396 Piston Cooling Nozzle (×6)
Cross Ref: OEM 5579309 | Supersedes: 5693832
Shop Now →
M-5579308
Cummins Inframe Kit — ISX / QSX (X15 CM2350 150mm)
Kit Includes:
- M-5405828 Piston Kit (×6)
- M-3678756 O-Ring Seal (×1)
- M-4026684 Oil Pan Gasket (×1)
- M-4357177 Pressure Relief Valve (×1)
- M-5406187 Upper Engine Gasket Set (×1)
- M-4376168 Cylinder Liner Kit (×6)
- M-5406110 Main Bearing Kit (×1)
- M-4318947 Thermostat (×1)
- MCB2882087 Connecting Rod Bearing (×6)
- M-3687058 Piston Cooling Nozzle (×6)
- M-4298242 High Temp Stud (×4)
- M-3818824 Hex Head Nut (×4)
- CG138TPR Product Box (×1)
- CG72PR Product Box (×1)
Cross Ref: OEM 6050INF1 | Supersedes: 5693831
Shop Now →

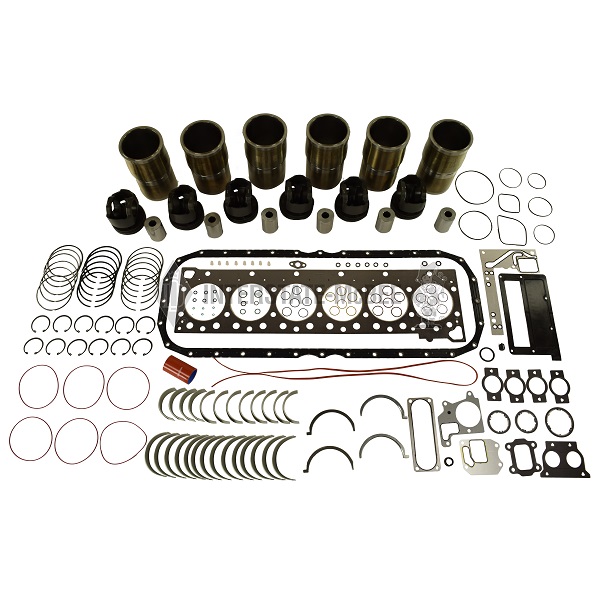

M-4376174
Cummins Inframe Kit — ISX / QSX (ISX '07 CM871 150mm APR)
Kit Includes:
- M-4376244 Piston Kit (×6)
- M-4376168 Cylinder Liner Kit (×6)
- M-4089405 Connecting Rod Bearing (×6)
- M-5406110 Main Bearing Kit (×1)
- M-3678756 O-Ring Seal (×1)
- M-4357177 Pressure Relief Valve (×1)
- M-4026684 Oil Pan Gasket (×1)
- M-4352145 Upper Engine Gasket Set (×1)
- CG138TPR Product Box (×1)
- CG72PR Product Box (×1)
Cross Ref: OEM 4376174 | Supersedes: M-4352289, M-4376174CA, 6429518
Shop Now →

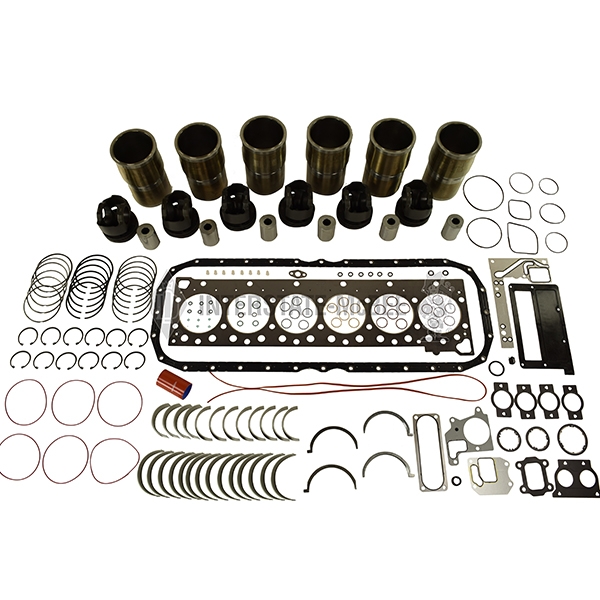

M-4376175
Cummins Inframe Kit — ISX / QSX (ISX '02 CM870 150mm APR)
Kit Includes:
- M-4376243 Piston Kit (×6)
- M-4376168 Cylinder Liner Kit (×6)
- M-4089405 Connecting Rod Bearing (×6)
- M-5406110 Main Bearing Kit (×1)
- M-3678756 O-Ring Seal (×1)
- M-4357177 Pressure Relief Valve (×1)
- M-4026684 Oil Pan Gasket (×1)
- M-4352145 Upper Engine Gasket Set (×1)
- CG138TPR Product Box (×1)
- CG72PR Product Box (×1)
Cross Ref: OEM 4376175 | Supersedes: M-2881886, M-4352290, MCB2881886, 6429516
Shop Now →

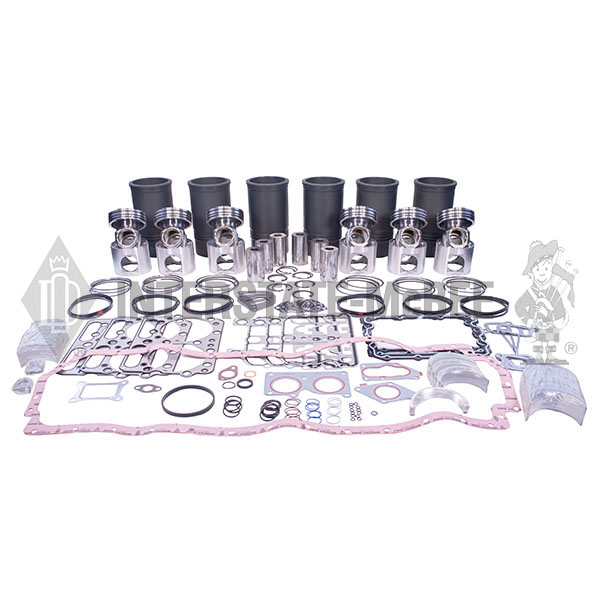

M-4024880
Cummins Inframe Kit — NT / N14
Kit Includes:
- CG136PR Product Box (×1)
- M-3055145 Connecting Rod Bearing (×12)
- M-3801260 Main Bearing Kit (×1)
- M-3803742 Cylinder Kit (×6)
- M-3804303 Oil Pan Install Kit (×1)
- M-4089371 Upper Engine Gasket Set (×1)
Cross Ref: OEM 4024880 | Supersedes: M-4024876
Shop Now →

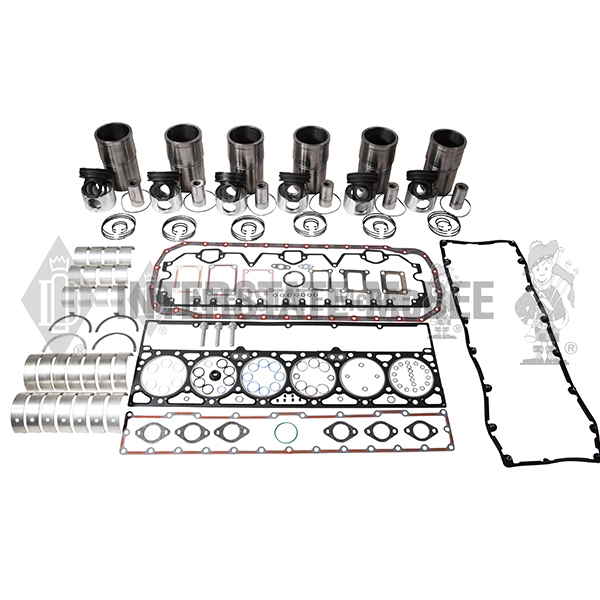

M-4918787
Cummins Inframe Kit — L10 / M11 / ISM / QSM (ISME)
Kit Includes:
- M-3016760 Connecting Rod Bearing (×12)
- M-4025120 Main Bearing Kit (×1)
- M-4089386 Piston Kit (×6)
- M-4089388 Cylinder Liner Kit (×6)
- M-4089478 Upper Engine Gasket Set (×1)
- M-3401290 Oil Pan Gasket (×1)
- M-3032787 O-Ring Seal (×1)
- CG150-PR Product Box (×1)
Cross Ref: OEM 4918787
Shop Now →
M-5473069
Cummins Inframe Kit — ISX / QSX (ISX CM2250 150mm APR)
Kit Includes:
- M-4376168 Cylinder Liner Kit (×6)
- M-2882023 Piston Kit (×6)
- M-4376104 Upper Engine Gasket Set (×1)
- M-5406110 Main Bearing Kit (×1)
- M-3678756 O-Ring Seal (×1)
- M-4357177 Pressure Relief Valve (×1)
- M-4026684 Oil Pan Gasket (×1)
- M-4318947 Thermostat (×1)
- M-4089405 Connecting Rod Bearing (×6)
- MCB2882087 Connecting Rod Bearing (×6)
- CG138TPR Product Box (×1)
- CG72PR Product Box (×1)
Cross Ref: OEM 5473069 | Supersedes: 5693737
Shop Now →

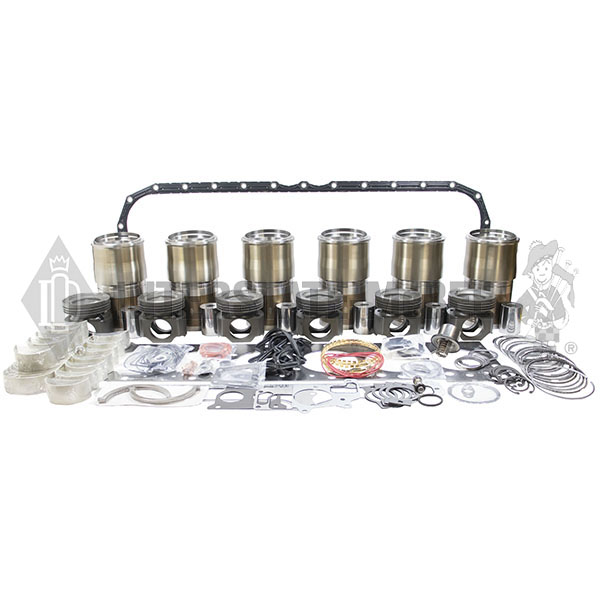

M-5473074
Cummins Inframe Kit — ISX / QSX (ISX CM2250 Fracture & Machined Rod 150mm APR)
Kit Includes:
- M-4376168 Cylinder Liner Kit (×6)
- M-2882080 Piston Kit (×6)
- M-4376104 Upper Engine Gasket Set (×1)
- M-5406110 Main Bearing Kit (×1)
- M-3678756 O-Ring Seal (×1)
- M-4357177 Pressure Relief Valve (×1)
- M-4026684 Oil Pan Gasket (×1)
- M-4318947 Thermostat (×1)
- M-4089405 Connecting Rod Bearing (×6)
- MCB2882087 Connecting Rod Bearing (×6)
- CG138TPR Product Box (×1)
- CG72PR Product Box (×1)
Cross Ref: Supersedes: 5693738
Shop Now →
M-5579454
Cummins Classic Inframe Kit — ISX / QSX (ISX CM2250 150mm APR)
Kit Includes:
- M-4376168 Cylinder Liner Kit (×6)
- M-2882023 Piston Kit (×6)
- M-4376104 Upper Engine Gasket Set (×1)
- M-5406110 Main Bearing Kit (×1)
- M-3678756 O-Ring Seal (×1)
- M-4357177 Pressure Relief Valve (×1)
- M-4026684 Oil Pan Gasket (×1)
- M-4318947 Thermostat (×1)
- M-4089405 Connecting Rod Bearing (×6)
- MCB2882087 Connecting Rod Bearing (×6)
- CG138TPR Product Box (×1)
- CG72PR Product Box (×1)
- M-3687058 Piston Cooling Nozzle (×6)
- M-3679037 Banjo Screw (×6)
- M-3818824 Hex Head Nut (×4)
- M-4298242 High Temp Stud (×4)
M-5579460
Cummins Inframe Kit — ISX / QSX (ISX CM2250 150mm APR)
Kit Includes:
- M-4376168 Cylinder Liner Kit (×6)
- M-2882080 Piston Kit (×6)
- M-4376104 Upper Engine Gasket Set (×1)
- M-5406110 Main Bearing Kit (×1)
- M-3678756 O-Ring Seal (×1)
- M-4357177 Pressure Relief Valve (×1)
- M-4026684 Oil Pan Gasket (×1)
- M-4318947 Thermostat (×1)
- M-4089405 Connecting Rod Bearing (×6)
- MCB2882087 Connecting Rod Bearing (×6)
- CG138TPR Product Box (×1)
- CG72PR Product Box (×1)
- M-3687058 Piston Cooling Nozzle (×6)
- M-3679037 Banjo Screw (×6)
- M-3818824 Hex Head Nut (×4)
- M-4298242 High Temp Stud (×4)

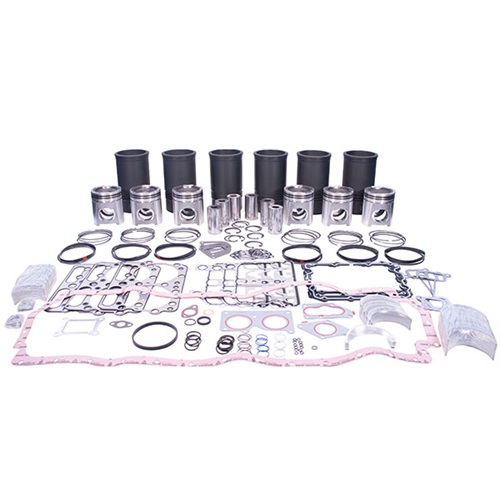

IF3801779BC
Cummins Inframe Kit — NT / N14 (Premium Big Cam I-III 4-Ring)
Kit Includes:
- CG136PR Product Box (×1)
- M-214950 Connecting Rod Bearing (×12)
- M-3099083P Gasket - Oil Pan - Packaged (×1)
- M-3801260 Main Bearing Kit (×1)
- M-3801779 Cylinder Kit (×6)
- M-4024945 Upper Engine Gasket Set (×1)
- MCB855AO Oil Pan Install Add On Kit (×1)
Detroit Diesel
DETROIT DIESEL
Series 60 12.7L · Series 60 14L · S50 and more
A-MCIF23532554QTCA
Detroit Diesel Inframe Kit — Series 60 (Articulated Piston)
Kit Includes:
- A-8929690 Camshaft Bearing (×7)
- A-MCIF23532554CA Inframe Kit (×1)
- MCB60HBK Head Bolt Kit (×1)
- A-8929878 Thermostat (×2)
- A-23522269 Rocker Cover Gasket (×1)
- CG150-PR Product Box (×1)

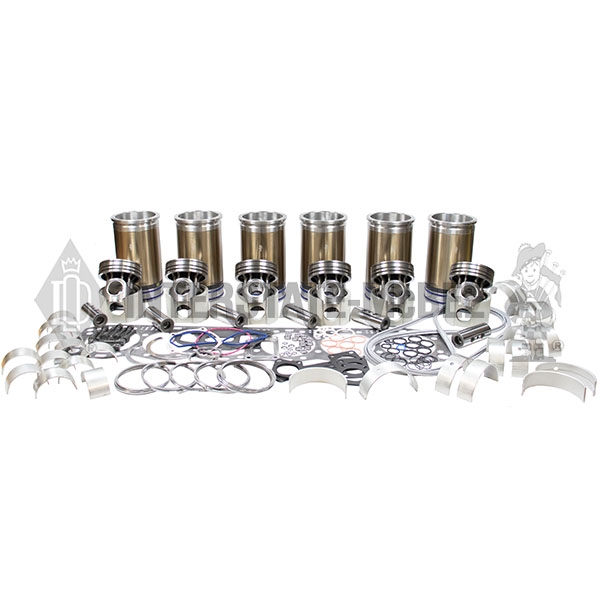

A-MCIF23532555CA
Detroit Diesel Inframe Kit — Series 60
Kit Includes:
- A-23505891 Oil Pump Outlet Seal Ring (×1)
- A-8929504 Spacer (×12)
- A-8929670 Shell Kit (×6)
- A-8929680 Thrust Shell Kit (×1)
- CG150-PR Product Box (×1)
- A-23505892 Oil Pump Inlet Seal Ring (×1)
- A-23505992 Oil Inlet Tube Gasket (×1)
- A-23515581 Connecting Rod Shell Kit (×6)
- A-23532333 Cylinder Head Gasket Set (×1)
- A-23532555CA Cylinder Kit (×6)
- A-5117269 Oil Pressure Regulator Body Gasket (×1)
- A-8929085 Thrust Washer (×2)
- A-8929102 Oil Pan Gasket (×1)
A-MCIFS60-1CA
Detroit Diesel Inframe Re-Ring Kit — Series 60 (w/o Piston & Pins)
Kit Includes:
- A-8929680 Thrust Shell Kit (×1)
- CG150-PR Product Box (×1)
- A-23515581 Connecting Rod Shell Kit (×6)
- A-8929085 Thrust Washer (×2)
- A-8929102 Oil Pan Gasket (×1)
- A-8929670 Shell Kit (×6)
- UNV-CYK-100-WAR-0001 Warning - Cyl Kit Break-in (×1)
- A-23531249CAKT Kit - Cylinder Liner (×6)
- A-23532333 Cylinder Head Gasket Set (×1)

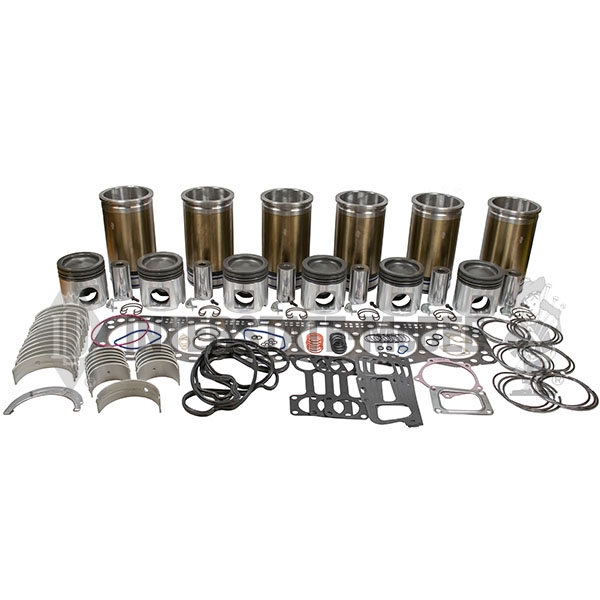

A-MCIF23532554CA
Detroit Diesel Inframe Kit — Series 60 (Articulated Piston)
Kit Includes:
- A-23505891 Oil Pump Outlet Seal Ring (×1)
- A-8929670 Shell Kit (×6)
- A-8929680 Thrust Shell Kit (×1)
- A-23505892 Oil Pump Inlet Seal Ring (×1)
- A-23505992 Oil Inlet Tube Gasket (×1)
- A-23522279 Oil Pan Gasket (×1)
- A-23526142 Connecting Rod Shell Kit (×6)
- A-23532333 Cylinder Head Gasket Set (×1)
- A-23532554CA Cylinder Kit (×6)
- A-5117269 Oil Pressure Regulator Body Gasket (×1)
- A-8929085 Thrust Washer (×2)
- CG150-PR Product Box (×1)
International
NAVISTAR
DT466 · DT530 · DT570 · MaxxForce and more
